Product Details
Place of Origin: CHINA
Brand Name: JIUHE
Certification: ISO CE
Model Number: 100m3/h
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: 40 CONTAINER
Delivery Time: 15 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 100SET
Brand: |
JIUHE |
Warranty: |
1 Year |
Condition: |
New |
Brand Of Diesel Engine: |
DEUTZ |
Keyword: |
Concrete Line Pump |
Main Pump: |
Rexroth |
Cylinder Diameter: |
200mm |
Hopper Capacity: |
0.6m3 |
Max. Aggregate Diameter: |
Crushed Stone: 40 / Pebble: 50 |
Max. Delivery Distance: |
1000m |
Max. Delivery Height: |
260m |
Max. Horizontal Delivery Distance: |
880m |
Max. Theoretical Conveying Capacity: |
100m3/h |
Outlet Diameter: |
125mm |
Power: |
186Kw |
Pumping System Pressure: |
22MPa |
Type: |
Trailer Concrete Pump |
Weight: |
13500kg |
Brand: |
JIUHE |
Warranty: |
1 Year |
Condition: |
New |
Brand Of Diesel Engine: |
DEUTZ |
Keyword: |
Concrete Line Pump |
Main Pump: |
Rexroth |
Cylinder Diameter: |
200mm |
Hopper Capacity: |
0.6m3 |
Max. Aggregate Diameter: |
Crushed Stone: 40 / Pebble: 50 |
Max. Delivery Distance: |
1000m |
Max. Delivery Height: |
260m |
Max. Horizontal Delivery Distance: |
880m |
Max. Theoretical Conveying Capacity: |
100m3/h |
Outlet Diameter: |
125mm |
Power: |
186Kw |
Pumping System Pressure: |
22MPa |
Type: |
Trailer Concrete Pump |
Weight: |
13500kg |

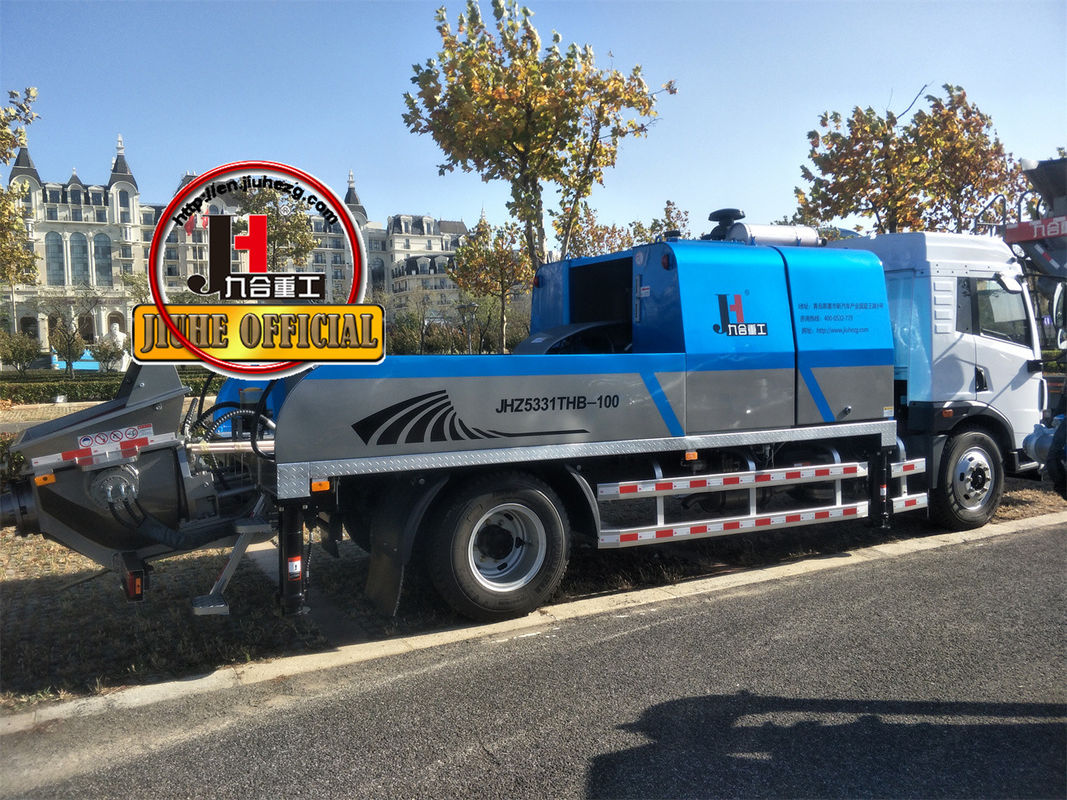

Truck mounted Concrete Line Pump PTO Driven Concrete Line Pump Concrete Pump Machinery AI-50CLPP for Australia
On the basis of mature electric commutation technology, we have developed overall hydraulic concrete pumps with excellent performance. This hydraulic system deletes PCL, constent pressure pump, accumulator and approach switch four parts that are extremely damageable parts in electronic commutation system. It greatly improves the reliability of the machine and makes sure it can work in any hard condition. Our various motor concrete pumps( diesel engine concrete pumps) mainly cover capacity from 30-120m³/h and pressure from 5-20Mpa.
| ITEM项目 | UNIT | SPECIFICATION说明 | |
| Model型号 | JHZ514THB-100-22 | ||
| Driving system | Chassis brand底盘品牌 | JIEFANG/ CA1167 | |
| Fuel tpye燃料类型 | Diesel | ||
| Displacement/Power | L/KW | 4.4/162 | |
| Displacement standard排放标准 |
GB3847/GB17691 National Standard V
|
||
| Tyre model轮胎型号 | 9.00R20 | ||
| Axle base轴距 | m | 4.9 | |
| quantity of axles轴数 | 2 | ||
| Max. driving speed最大行驶速度 | Km/h | 89 | |
| Front wheel base前轴距 | mm | 1800 | |
| Back wheel base后轴距 | mm | 1740 | |
| Pumping system | Brand of diesel engine柴油机品牌 | DEUTZ | |
| Diesel engine model 柴油机型号 | BF6M1013-25T3R | ||
| Diesel engine power柴油机功率 | KW | 186 | |
| Driving mode驱动行驶 | Hydraulic driving | ||
| Main oil pump主油泵 | Rexroth | ||
|
Oil cylinder inner diameter × stroke 油缸内径x行程 |
mm | Ф180×1900 | |
|
Concrete cylinder inner diameter × stroke 混凝土缸X行程 |
mm | Ф230×1900 | |
|
Oil pressure of system 系统油压 |
MPa | 32 | |
|
Switch of H-pressure and L-pressure 高低压转换装置 |
Equipped | ||
|
Fuel tank capacity 燃料油缸容量 |
L | 300 | |
|
Oil tank capacity 液压油缸容量 |
L | 740 | |
|
Cooling mode of hydraulic system 液压系统冷却形式 |
Fan cooling风冷 | ||
| Hopper capacity料斗容积 | m3 | 0.6 | |
| Feeding height上料高度 | mm | ≤1500 | |
| Concrete slump混凝土坍落度 | cm | 14～23 | |
|
Max. aggregate diameter 最大骨料粒径 |
mm |
Crushed stone: 40 / Pebble: 50 碎石40卵石50 |
|
| Valve管阀 | S Valve S阀 | ||
|
Water pump for cleaning 清洗水泵 |
water pump | ||
|
Concrete pipe cleaning mode 混凝土管路清洗方式 |
Water cleaning 水洗 |
||
|
Water tank capacity 水箱容积 |
L | 400 | |
|
Operation mode 操作方式 |
Manual /Wire手动,有线遥控 | ||
|
Lubrication mode 润滑方式 |
Automatic自动 | ||
| Overall dimension | Length (mm)长度 | mm | 9195 |
| Width (mm)宽度 | mm | 2458 | |
| Height (mm)高度 | mm | 2623 | |
| Full-load total weight满载总重 | Kg | 13500 | |
Development strategy
Strives for the survival by the quality, seek development by science and technology
Corporate philosophy
People-oriented, science and technology enterprise, recruiting high level scientific and
technological personnel, actively introduce advanced technology at home and abroad
JiuHe Service
As a professional company,we promise as following:
JIUHE HEAVEY INDUSTRY MACHINERY service system MAX customer experiences.
A. Pre-sales service:
1. Selecting the most suitable equipment,
2. Designing your personal machinery according to special construction demands,
3. Training your technicians to operate our equipment,
4. Providing advice to ensure equipment running well in various construction. environments,
5. Making new construction scheme if necessary.
B. Sales service:
1. Equipment delivery transport agent,
2. Equipment quality control before delivery,
3. Introduce our service system to customers.
C. After-sales service:
1. Making the first construction scheme,
2. Installing and debugging your equipment,
3. Troubleshooting on site, prompt and initiative,
4. door to door accessories and parts,
5. Opportunities to get technical communications with our engineers.
D. Value-added service:
1. Overall process and zero distance technology tracking service for key projects,
2. Carry out large maintenance business,
3. Regular equipment checking service,
4. Technology update,
4. Provide professional periodic maintenance standards for customers.
JIUHE HEAVEY INDUSTRY MACHINERY Service Commitments for sold equipment:
1. Dispatch technicians to install and debug equipment in time if necessary,
2. Provide free maintenance service for the products which have product quality problems within a year after the delivery,
3. Provide free operation and maintenance training service for users
4. Provide lifelong paid maintenance service, accessories and parts supply for the sold products.
