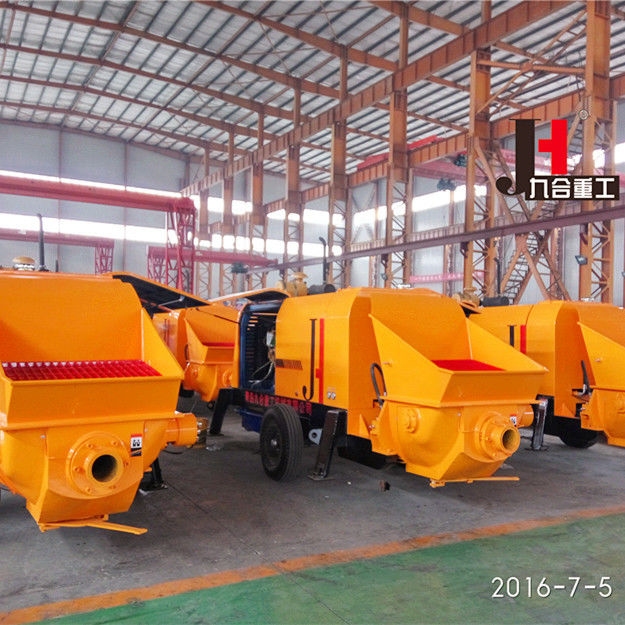

Trailer Mounted Concrete Pump Output 30-100m3/H With Diesel And Electric

Product Details

Place of Origin: CHINA

Brand Name: JIUHE

Certification: ISO CE

Model Number: 40M3/H TO 100M3/H

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $13,500.00

Delivery Time: 15 working days

Payment Terms: L/C, T/T

Supply Ability: 300

Get Best Price
Highlight:

jiuhe upper driven Diesel Trailer Mounted Concrete Pump

,

jiuhe upper driven Electric Trailer Mounted Concrete Pump

,

jiuhe upper driven Trailer Mounted Concrete Pump

BRAND:
JIUHE
MODEL:
40M/H TO 100M/H
ENGINE:
Electric Or Diesel
BRAND:
JIUHE
MODEL:
40M/H TO 100M/H
ENGINE:
Electric Or Diesel
Trailer Mounted Concrete Pump Output 30-100m3/H With Diesel And Electric
Trailer Mounted Concrete Pump Output 30-100m3/h with diesel and electric


Product Description



Trailer concrete pump

Trailer concrete pump is a kind of high-quality concrete pump, which can be towed continuously and transported concrete to the pouring construction site continuously through the horizontal or vertical laying pipelines. It is one of the important equipment which is indispensable for the construction of concrete mechanization. Among so many kinds of concrete pumps, what are advantages of concrete trailer pump?



Different Models of Trailer Mounted Concrete Pumps

There are a lot of trailer pumps, such as concrete stationary pump, manual concrete pump and so on. Most of us pay more attention to output or power system.


If your most important consideration is output, there is need to worry. Because the output of our pump ranges from 30 cubic meters per hour to 90 cubic meters per hour. It can totally meet the demand of different projects.


If you pay more attention to power system, we have diesel concrete pump and electric concrete pump for your reference.

A. Electric Concrete Pump

Trailer Mounted Concrete Pump Output 30-100m3/H With Diesel And Electric 0



XBS25-12-33

Max. theo. output(L/H): 25 m3/h
Max. pumping pressure: 12MPa
Max. vertical pumping distance: 140m
Max. horizontal pumping distance: 400m

Trailer Mounted Concrete Pump Output 30-100m3/H With Diesel And Electric 1



XBS30-13-40

Max. theo. output(L/H): 30 m3/h
Max. pumping pressure: 13MPa
Max. vertical pumping distance: 160m
Max. horizontal pumping distance: 500m

Trailer Mounted Concrete Pump Output 30-100m3/H With Diesel And Electric 2



XBS40-13-48

Max. theo. output(L/H): 40 m3/h
Max. pumping pressure: 13MPa
Max. vertical pumping distance: 180m
Max. horizontal pumping distance: 600m

Trailer Mounted Concrete Pump Output 30-100m3/H With Diesel And Electric 3



HBT40S-10-45

Max. theo. output(L/H): 40 m3/h
Max. pumping pressure: 13MPa
Max. vertical pumping distance: 150m
Max. horizontal pumping distance: 400m

Trailer Mounted Concrete Pump Output 30-100m3/H With Diesel And Electric 4



HBT50S-13-55

Max. theo. output(L/H): 50 m3/h
Max. pumping pressure: 13MPa
Max. vertical pumping distance: 150m
Max. horizontal pumping distance: 400m

Trailer Mounted Concrete Pump Output 30-100m3/H With Diesel And Electric 5



HBT60-13-90

Max. theo. output(L/H): 60 m3/h
Max. pumping pressure: 13MPa
Max. vertical pumping distance: 180m
Max. horizontal pumping distance: 500m

Trailer Mounted Concrete Pump Output 30-100m3/H With Diesel And Electric 6



HBT60-16-110

Max. theo. output(L/H): 60 m3/h
Max. pumping pressure: 16MPa
Max. vertical pumping distance: 240m
Max. horizontal pumping distance: 600m

Trailer Mounted Concrete Pump Output 30-100m3/H With Diesel And Electric 7



HBT80-13-110

Max. theo. output(L/H): 80 m3/h
Max. pumping pressure: 13MPa
Max. vertical pumping distance: 180m
Max. horizontal pumping distance: 500m

With softstarter

Trailer Mounted Concrete Pump Output 30-100m3/H With Diesel And Electric 8



HBT80-16-132

Max. theo. output(L/H): 80 m3/h
Max. pumping pressure: 16MPa
Max. vertical pumping distance: 240m
Max. horizontal pumping distance: 600m

With softstarter

B. Diesel Concrete Pump

Trailer Mounted Concrete Pump Output 30-100m3/H With Diesel And Electric 9



DHBT40S-13-85

Max. theo. output(L/H): 40 m3/h
Max. pumping pressure: 13MPa
Max. vertical pumping distance: 150m
Max. horizontal pumping distance: 400m

Trailer Mounted Concrete Pump Output 30-100m3/H With Diesel And Electric 10



DHBT50S-13-85

Max. theo. output(L/H): 50 m3/h
Max. pumping pressure: 13MPa
Max. vertical pumping distance: 150m
Max. horizontal pumping distance: 400m

Trailer Mounted Concrete Pump Output 30-100m3/H With Diesel And Electric 11



DHBT60S-13-130

Max. theo. output(L/H): 60 m3/h
Max. pumping pressure: 13MPa
Max. vertical pumping distance: 180m
Max. horizontal pumping distance: 500m

Trailer Mounted Concrete Pump Output 30-100m3/H With Diesel And Electric 12



DHBT60S-16-145

Max. theo. output(L/H): 60 m3/h
Max. pumping pressure: 16MPa
Max. vertical pumping distance: 240m
Max. horizontal pumping distance: 600m

Trailer Mounted Concrete Pump Output 30-100m3/H With Diesel And Electric 13



DHBT80S-13-145

Max. theo. output(L/H): 80 m3/h
Max. pumping pressure: 13MPa
Max. vertical pumping distance: 180m
Max. horizontal pumping distance: 500m

Trailer Mounted Concrete Pump Output 30-100m3/H With Diesel And Electric 14



DHBT80S-16-176

Max. theo. output(L/H): 80 m3/h
Max. pumping pressure: 16MPa
Max. vertical pumping distance: 240m
Max. horizontal pumping distance: 600m

Trailer Mounted Concrete Pump Output 30-100m3/H With Diesel And Electric 15



DHBT100-21-186

Max. theo. output(L/H): 100 m3/h
Max. pumping pressure: 21MPa
Max. vertical pumping distance: 260m
Max. horizontal pumping distance: 800m



Trailer Mounted Concrete Pump Output 30-100m3/H With Diesel And Electric 16



Self-climbing 28m 32m 33m 36m concrete placing boom

Working with concrete pump ,click the picture to check more detailed infomation

Trailer Mounted Concrete Pump Output 30-100m3/H With Diesel And Electric 17



15m 17m 18m 21m mobile concrete placing boom

Working with concrete pump ,click the picture to check more detailed infomation

Advantages of Trailer Concrete Pump

According to movement, concrete pumps can be classified into three types: trailer mounted pump, truck-mounted concrete pump, concrete boom pump.
Although both truck-mounted pump and concrete trailer pump can be moved very easily, the cost of trailer pump is lower than truck-mounted pump and become a much economical choice.
Compared with concrete boom pump, trailer pump has more broadly applications. Boom pump is usually be applied in large-scale construction sites, such as building skyscrapers or cross-sea bridges. However, trailer pump not only is suitable for in construction sites of high buildings and bridges, but also offers a ideal solution for placing concrete in hard-to-access areas, including projects about tunnels and water conservancy.

JH Brand Advantages
Trailer Mounted Concrete Pump Output 30-100m3/H With Diesel And Electric 18
Trailer Mounted Concrete Pump Output 30-100m3/H With Diesel And Electric 19
Trailer Mounted Concrete Pump Output 30-100m3/H With Diesel And Electric 20
Trailer Mounted Concrete Pump Output 30-100m3/H With Diesel And Electric 21
Our Service


JIUHE HEAVEY INDUSTRY MACHINERY service system MAX customer experiences.

A. Pre-sales service:
1. Selecting the most suitable equipment,
2. Designing your personal machinery according to special construction demands,
3. Training your technicians to operate our equipment,
4. Providing advice to ensure equipment running well in various construction. environments,
5. Making new construction scheme if necessary.

B. Sales service:
1. Equipment delivery transport agent,
2. Equipment quality control before delivery,
3. Introduce our service system to customers.

C. After-sales service:
1. Making the first construction scheme,
2. Installing and debugging your equipment,
3. Troubleshooting on site, prompt and initiative,
4. door to door accessories and parts,
5. Opportunities to get technical communications with our engineers.


D. Value-added service:
1. Overall process and zero distance technology tracking service for key projects,
2. Carry out large maintenance business,
3. Regular equipment checking service,
4. Technology update,
5. Provide professional periodic maintenance standards for customers.

JIUHE HEAVEY INDUSTRY MACHINERY Service Commitments for sold equipment:

1. Dispatch technicians to install and debug equipment in time if necessary,
2. Provide free maintenance service for the products which have product quality problems within a year after the delivery,
3. Provide free operation and maintenance training service for users
4. Provide lifelong paid maintenance service, accessories and parts supply for the sold products.
