Product Details
Place of Origin: CHINA
Brand Name: JIUHE
Certification: ISO CE
Model Number: 80m3/h
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: 40 CONTAINER
Delivery Time: 15 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 100SET
Brand: |
JIUHE |
Warranty: |
1 Year |
Condition: |
New |
Color: |
As Requested |
Keyword: |
Concrete Pump |
Main Pump: |
Kawasaki |
Cylinder Diameter: |
200mm |
Hopper Capacity: |
0.45m3 |
Max. Aggregate Diameter: |
40mm |
Max. Delivery Distance: |
1000m |
Max. Delivery Height: |
250m |
Max. Horizontal Delivery Distance: |
800m |
Max. Theoretical Conveying Capacity: |
90m3/h |
Outlet Diameter: |
125mm |
Power: |
176Kw |
Pumping System Pressure: |
16MPa |
Type: |
Trailer Concrete Pump |
Weight: |
6800kg |
Brand: |
JIUHE |
Warranty: |
1 Year |
Condition: |
New |
Color: |
As Requested |
Keyword: |
Concrete Pump |
Main Pump: |
Kawasaki |
Cylinder Diameter: |
200mm |
Hopper Capacity: |
0.45m3 |
Max. Aggregate Diameter: |
40mm |
Max. Delivery Distance: |
1000m |
Max. Delivery Height: |
250m |
Max. Horizontal Delivery Distance: |
800m |
Max. Theoretical Conveying Capacity: |
90m3/h |
Outlet Diameter: |
125mm |
Power: |
176Kw |
Pumping System Pressure: |
16MPa |
Type: |
Trailer Concrete Pump |
Weight: |
6800kg |

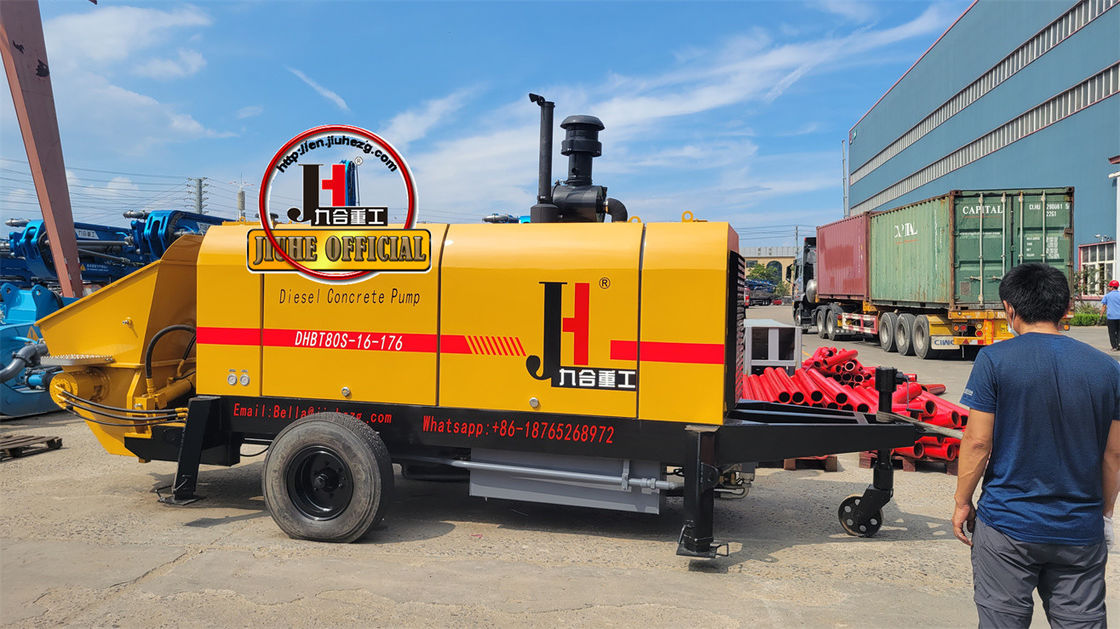

JIUHE DHbts80 80m3/H Concrete Pump on Sale
Introducing the 80m³/h Hydraulic Trailer Pump by JIUHE GROUP, an exceptional piece of
engineering equipment that combines state-of-the-art technology with time-tested design to
provide unparalleled advantages for your construction projects. Here are the key features and
advantages of our 80m³/h Hydraulic Trailer Pump:
1.High Productivity: Our 80m³/h Hydraulic Trailer Pump boasts outstanding pumping capacity, handling
60 cubic meters of concrete per hour, ensuring rapid progress in construction schedules. It is suitable
for both small and large-scale construction projects.
2.Exceptional Pumping Performance: The hydraulic trailer pump features an efficient hydraulic system
and precise pumping mechanism, ensuring stable and reliable pumping performance. It delivers uniform
pumping regardless of concrete mix, reducing waste.
3.Convenient Operation: Designed with operator convenience in mind, the hydraulic trailer pump is easy
to operate. Equipped with an intuitive control panel, operators can easily master the equipment, enhancing
construction efficiency.
4.Robust Durability: The 80m³/h Hydraulic Trailer Pump is constructed using high-strength materials and
impeccable manufacturing processes, ensuring the equipment's durability. It can withstand testing conditions
in various challenging construction environments and operate reliably over the long term.
5.Versatile Multi-Purpose: This hydraulic trailer pump is not limited to concrete pumping; it can also be used for
conveying mortar, paste-like materials, and other granular substances, making it a versatile construction tool.
| Item项目 | Unit单位 | Parameter参数 | |
|
Pumping system 泵送系统 |
Max. theoretical delivery volume 最大理论输送量 |
m³/h | 80 |
|
Max. theoretical delivery pressure 最大理论输送压力 |
Mpa | 15.7 | |
|
Max. theoretical delivery height 最大理论输送高度 |
m | 250 | |
|
Max. theoretical delivery distance 最大理论输送距离 |
m | 1000 | |
|
Max. delivery frequency 最大泵送频率 |
times/min | 26 (low pressure低压); 16 (high pressure高压) | |
|
Type of distribution valve 分配阀形式 |
S tube valve S 管阀 |
||
|
Specification of delivery cylinder 输送缸规格 |
mm | 200×1650 | |
|
Specification of main cylinder 主油缸规格 |
mm | Ф140/90×1650 | |
|
Volume of gasoline tank 液压油邮箱容积 |
L | 420 | |
|
Hopper capacity 料斗容积 |
L | 600 | |
|
Hoisting height 上料高度 |
mm | 1450 | |
|
Output opening diameter 出料口直径 |
mm | 150 | |
|
Inner dia. of delivery pipe 输送管内径 |
mm | 125 | |
|
Fuel consumption 油耗 |
228g/kwh | ||
|
Power of diesel engine 柴油机功率 |
Kw | 176 | |
|
Rated rotate speed 额定转速 |
r/min | 2300 | |
|
Idling speed 怠速 |
r/min | 800 | |
|
Voltage of battery cell 蓄电池电压 |
V | 24VDC | |
|
Volume of oil tank 油箱容积 |
L | 150 | |
|
Hydraulic system 液压系统 |
Hydraulic oil circuit type 液压油循环形式 |
Open circuit 开式 |
|
|
Max. oil pressure of main system 主系统油压 |
MPa | 32 | |
|
Max. oil pressure of mixing system 搅拌系统油压 |
MPa | 14 | |
|
Max. mixing rotate speed 最大搅拌转速 |
r/min | 24 | |
|
Other parameters 其他参数 |
Concrete slump 混凝土塌落度 |
mm | 80～200 |
|
Allowable max dia. of aggregate 允许最大骨料粒径 |
mm | Pebble50, crushed stone 40 | |
|
Dimension (length×width× height) 尺寸 |
mm | 6600×1930×2190 | |
|
Weight 重量 |
Kg | 6800 | |
Development strategy
Strives for the survival by the quality, seek development by science and technology
Corporate philosophy
People-oriented, science and technology enterprise, recruiting high level scientific and
technological personnel, actively introduce advanced technology at home and abroad
JiuHe Service
As a professional company,we promise as following:
JIUHE HEAVEY INDUSTRY MACHINERY service system MAX customer experiences.
A. Pre-sales service:
1. Selecting the most suitable equipment,
2. Designing your personal machinery according to special construction demands,
3. Training your technicians to operate our equipment,
4. Providing advice to ensure equipment running well in various construction. environments,
5. Making new construction scheme if necessary.
B. Sales service:
1. Equipment delivery transport agent,
2. Equipment quality control before delivery,
3. Introduce our service system to customers.
C. After-sales service:
1. Making the first construction scheme,
2. Installing and debugging your equipment,
3. Troubleshooting on site, prompt and initiative,
4. door to door accessories and parts,
5. Opportunities to get technical communications with our engineers.
D. Value-added service:
1. Overall process and zero distance technology tracking service for key projects,
2. Carry out large maintenance business,
3. Regular equipment checking service,
4. Technology update,
4. Provide professional periodic maintenance standards for customers.
JIUHE HEAVEY INDUSTRY MACHINERY Service Commitments for sold equipment:
1. Dispatch technicians to install and debug equipment in time if necessary,
2. Provide free maintenance service for the products which have product quality problems within a year after the delivery,
3. Provide free operation and maintenance training service for users
4. Provide lifelong paid maintenance service, accessories and parts supply for the sold products.
