Product Details
Place of Origin: CHINA
Brand Name: JIUHE
Certification: ISO CE
Model Number: 30m3/h
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: US $155000.00 - 160000.00/ Set
Delivery Time: 15 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 100SET
Power Type: |
Electric |
Max. Vertical Conveying Distance: |
17.5m |
Max. Horizontal Conveying Distance: |
14.5m |
Productivity: |
30m3/h |
Power Type: |
Electric |
Max. Vertical Conveying Distance: |
17.5m |
Max. Horizontal Conveying Distance: |
14.5m |
Productivity: |
30m3/h |

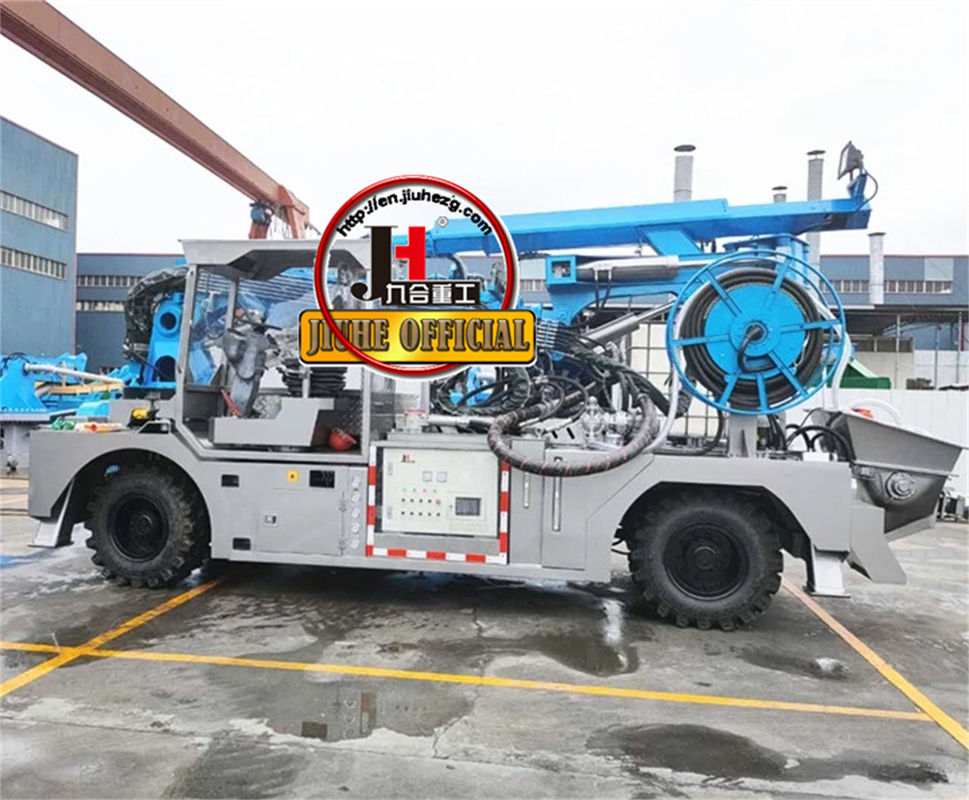

JIUHE BRAND Mine Truck-mounted Robot Shotcrete Machine for sale
Shotcrete Machine Brief introduction
The Concrete Injection Sprayer is a new generation of equipment, which has synthesized the
technology of domestic and foreign Concrete Sprayer. It has solved the shortage that the
traditional small model of Concrete Sprayer can not spay concrete well in long and big tunnels.
And it has greatly improved the working environment for workers in the tunnel.
Thanks to it, workers can construct higher efficiency, reduce concrete consumption, and guarantee
construction quality. It works with a dual working system. Low carbon emission can meet the practical
environmental protection idea. So it is the best choice for the tunnel construction of hydro-power project,
railway tunnel, road tunnel and so on.
| JHGHP30 Engineering chassis wet shotcrete machine | |||
| Whole machine performance | Max. theoretic delivery volume | m³/h | 30 |
| Max. theoretic delivery pressure | Mpa | 7.5 | |
| spraying height | M | 16 | |
| Main oil cylinder dia./stroke dia. | mm | 90/180 | |
| stroke | mm | 1000 | |
| concerete cylinder dia. | mm | 180 | |
| distribution valve type | S Valve | ||
| Dimension(length*width*height) | 7800×2480×3240 | ||
| total weight | Kg | 20000(without oil) | |
| max.aggregate size | mm | 25 | |
| delivery pipe dia. | mm | 125~80 | |
| Chassis system | Work driving mode | electromotor+diesel emergency system | |
| diesel power | Kw | 93 | |
| chassis model | JIUHE Produced Engineering chassis | ||
| chassis wheelbase | mm | 4500 | |
| max. driving speed | Km/h | 20 | |
| min. turning radius | m | inner2.4outer5.72 | |
| electric system | electromotor type | three-phase asynchronous motor | |
| related power | Kw | 75 | |
| related voltage/frenquency | 380V-50Hz | ||
| hydraulic system | mode | full hydraulic reversing open hydraulic system | |
| pumping oil pressure | Mpa | 31.5 | |
| hydraulic oil tank available capaicty | L | 600 | |
| cool type | Fan cool | ||
| boom system | turret rotation angle | -5°~+290° | |
| big boom pitching angle | -30°~+60° | ||
| mid boom pitching angle(compare with big boom) | -120°~+30° | ||
| small boom rotation angle | -60°~+180° | ||
| front boom stretch length | mm | 2000 | |
| Rear boom Stretch length | mm | 2000 | |
Development strategy
Strives for the survival by the quality, seek development by science and technology
Corporate philosophy
People-oriented, science and technology enterprise, recruiting high level scientific and
technological personnel, actively introduce advanced technology at home and abroad
JiuHe Service
As a professional company,we promise as following:
JIUHE HEAVEY INDUSTRY MACHINERY service system MAX customer experiences.
A. Pre-sales service:
1. Selecting the most suitable equipment,
2. Designing your personal machinery according to special construction demands,
3. Training your technicians to operate our equipment,
4. Providing advice to ensure equipment running well in various construction. environments,
5. Making new construction scheme if necessary.
B. Sales service:
1. Equipment delivery transport agent,
2. Equipment quality control before delivery,
3. Introduce our service system to customers.
C. After-sales service:
1. Making the first construction scheme,
2. Installing and debugging your equipment,
3. Troubleshooting on site, prompt and initiative,
4. door to door accessories and parts,
5. Opportunities to get technical communications with our engineers.
D. Value-added service:
1. Overall process and zero distance technology tracking service for key projects,
2. Carry out large maintenance business,
3. Regular equipment checking service,
4. Technology update,
4. Provide professional periodic maintenance standards for customers.
JIUHE HEAVEY INDUSTRY MACHINERY Service Commitments for sold equipment:
1. Dispatch technicians to install and debug equipment in time if necessary,
2. Provide free maintenance service for the products which have product quality problems within a year after the delivery,
3. Provide free operation and maintenance training service for users
4. Provide lifelong paid maintenance service, accessories and parts supply for the sold products.
