Product Details
Place of Origin: CHINA
Brand Name: JIUHE
Certification: ISO CE
Model Number: 40m3/h
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: 40 CONTAINER
Delivery Time: 15 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 100SET
Brand: |
JIUHE |
Warranty: |
1 Year |
Condition: |
New |
Color: |
As Requested |
Keyword: |
Concrete Pump |
Main Pump: |
Kawasaki |
Cylinder Diameter: |
200mm |
Hopper Capacity: |
0.45m3 |
Max. Aggregate Diameter: |
20mm |
Outlet Diameter: |
125mm |
Type: |
Trailer Concrete Pump |
Weight: |
2100kg |
Brand: |
JIUHE |
Warranty: |
1 Year |
Condition: |
New |
Color: |
As Requested |
Keyword: |
Concrete Pump |
Main Pump: |
Kawasaki |
Cylinder Diameter: |
200mm |
Hopper Capacity: |
0.45m3 |
Max. Aggregate Diameter: |
20mm |
Outlet Diameter: |
125mm |
Type: |
Trailer Concrete Pump |
Weight: |
2100kg |
Good Quality Xbs40 Wp Textil Concrete Pumping Without Truck Concrete Pump

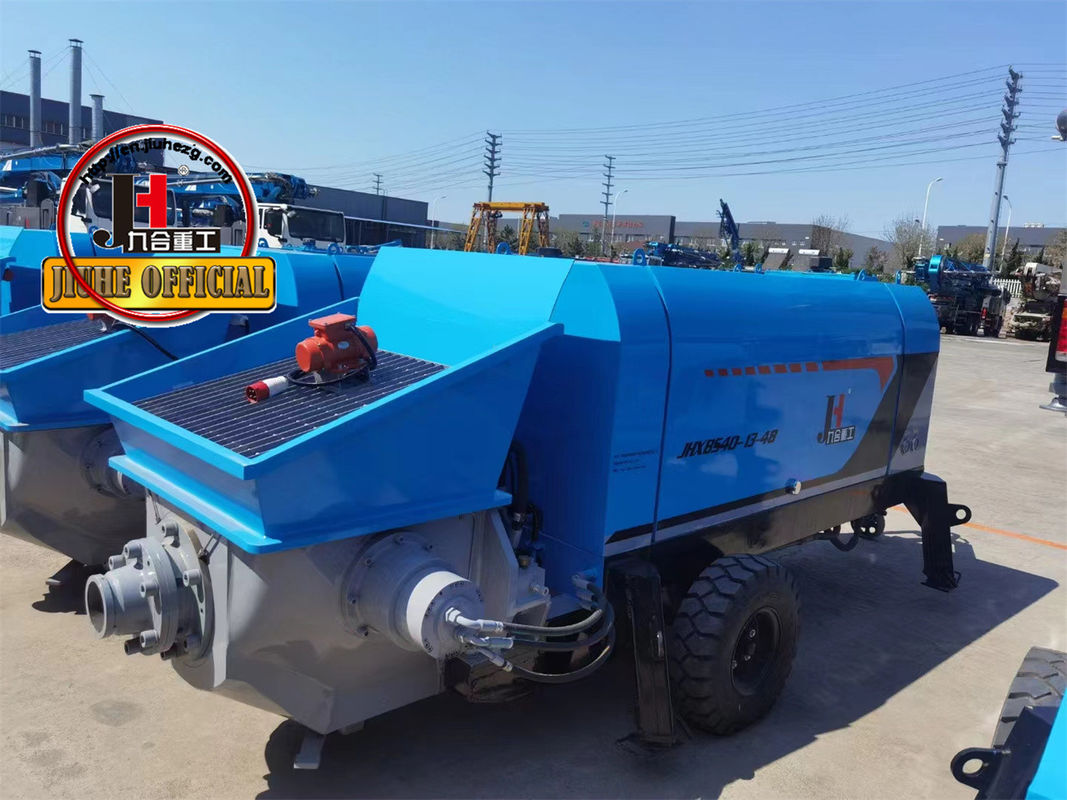

Introducing the 40m³/h Hydraulic Trailer Pump by JIUHE GROUP, an exceptional piece of
engineering equipment that combines state-of-the-art technology with time-tested design to
provide unparalleled advantages for your construction projects. Here are the key features and
advantages of our 40m³/h Hydraulic Trailer Pump:
1.High Productivity: Our 40m³/h Hydraulic Trailer Pump boasts outstanding pumping capacity, handling
60 cubic meters of concrete per hour, ensuring rapid progress in construction schedules. It is suitable
for both small and large-scale construction projects.
2.Exceptional Pumping Performance: The hydraulic trailer pump features an efficient hydraulic system
and precise pumping mechanism, ensuring stable and reliable pumping performance. It delivers uniform
pumping regardless of concrete mix, reducing waste.
3.Convenient Operation: Designed with operator convenience in mind, the hydraulic trailer pump is easy
to operate. Equipped with an intuitive control panel, operators can easily master the equipment, enhancing
construction efficiency.
4.Robust Durability: The 40m³/h Hydraulic Trailer Pump is constructed using high-strength materials and
impeccable manufacturing processes, ensuring the equipment's durability. It can withstand testing conditions
in various challenging construction environments and operate reliably over the long term.
5.Versatile Multi-Purpose: This hydraulic trailer pump is not limited to concrete pumping; it can also be used for
conveying mortar, paste-like materials, and other granular substances, making it a versatile construction tool.
Items |
Units |
Parameters |
|
Whole machines performance |
Theoretical max. discharging volume |
m³/h |
40 |
Theoretical max. delivery pressure |
Mpa |
13 |
|
Max. delivery frequency |
times/min |
30 |
|
The type of distribution valve |
S valve |
||
Specification of delivery cylinder |
mm |
Φ140×800 |
|
Specification of main oil cylinder |
mm |
Φ80/Φ50×800 |
|
Outlet opening diameter |
mm |
Φ125 |
|
Hopper capacity |
L |
300 |
|
Power system |
Rated voltage |
V |
~380 |
Main motor power |
Kw |
45 |
|
Rated speed |
r/min |
1470 |
|
Assistant motor power |
Kw |
3 |
|
Rated speed |
r/min |
1430 |
|
Hydraulic system |
Hydraulic oil circuit type |
Open circuit |
|
Max. oil pressure of pumping system |
MPa |
25 |
|
Max. oil pressure of mixing system |
MPa |
9 |
|
Max. mixing speed |
r/min |
24 |
|
Oil tank capacity |
L |
200 |
|
Other parameters |
Max. diameter of aggregates |
mm |
30 |
Inner dia. of delivery pipe |
mm |
Φ80 |
|
Dimension (length×width×height) |
mm |
4300×1500×1500 |
|
Overall weight |
Kg |
2100 |
|
Pulling speed |
Km/h |
≤8 |
Development strategy
Strives for the survival by the quality, seek development by science and technology
Corporate philosophy
People-oriented, science and technology enterprise, recruiting high level scientific and
technological personnel, actively introduce advanced technology at home and abroad
JiuHe Service
As a professional company,we promise as following:
JIUHE HEAVEY INDUSTRY MACHINERY service system MAX customer experiences.
A. Pre-sales service:
1. Selecting the most suitable equipment,
2. Designing your personal machinery according to special construction demands,
3. Training your technicians to operate our equipment,
4. Providing advice to ensure equipment running well in various construction. environments,
5. Making new construction scheme if necessary.
B. Sales service:
1. Equipment delivery transport agent,
2. Equipment quality control before delivery,
3. Introduce our service system to customers.
C. After-sales service:
1. Making the first construction scheme,
2. Installing and debugging your equipment,
3. Troubleshooting on site, prompt and initiative,
4. door to door accessories and parts,
5. Opportunities to get technical communications with our engineers.
D. Value-added service:
1. Overall process and zero distance technology tracking service for key projects,
2. Carry out large maintenance business,
3. Regular equipment checking service,
4. Technology update,
4. Provide professional periodic maintenance standards for customers.
JIUHE HEAVEY INDUSTRY MACHINERY Service Commitments for sold equipment:
1. Dispatch technicians to install and debug equipment in time if necessary,
2. Provide free maintenance service for the products which have product quality problems within a year after the delivery,
3. Provide free operation and maintenance training service for users
4. Provide lifelong paid maintenance service, accessories and parts supply for the sold products.
